Technical Specifications
General

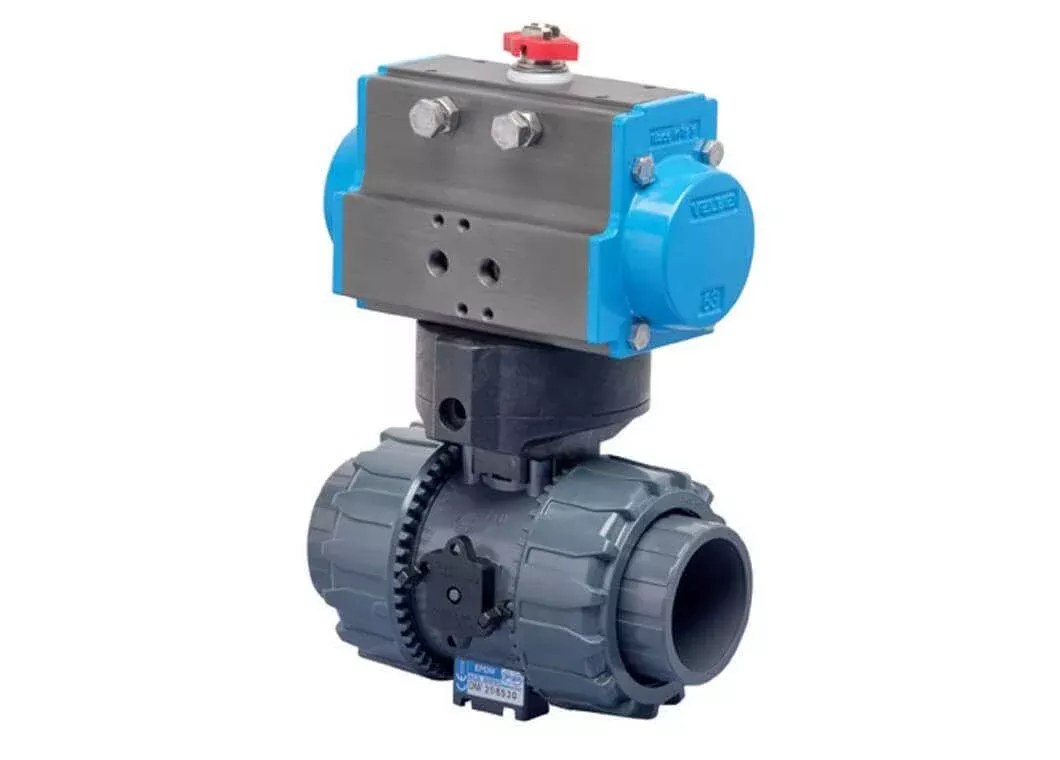

| Item | 2-Way Pneumatic Actuated Ball Valve |
|---|---|
| Design Type | Dual Union Nut Locks |
| Air Supply Needed | 80 PSI |
| Actuation Type | Pneumatic Spring Return |
| Brand | Bonomi Valves |
| Manufacturer Part | 8P2SRCPVC-1 |
| Size | 1″ |
Materials & Construction
| Body Material | CPVC |
|---|---|
| Ball Material | CPVC |
| Seat Material | P.T.F.E. |
| Packing Material | EPDM |
Performance
| Pressure Rating | 232 PSI at 73°F |
|---|---|
| Temp. Rating | -4°F to +250°F |
Connections
| Port | Full Port |
|---|---|
| End Connection | NPT and Socket Ends Included |
Standards & Certifications
See Specification SheetDownload Specification Sheet (PDF)
