Technical Specifications
General

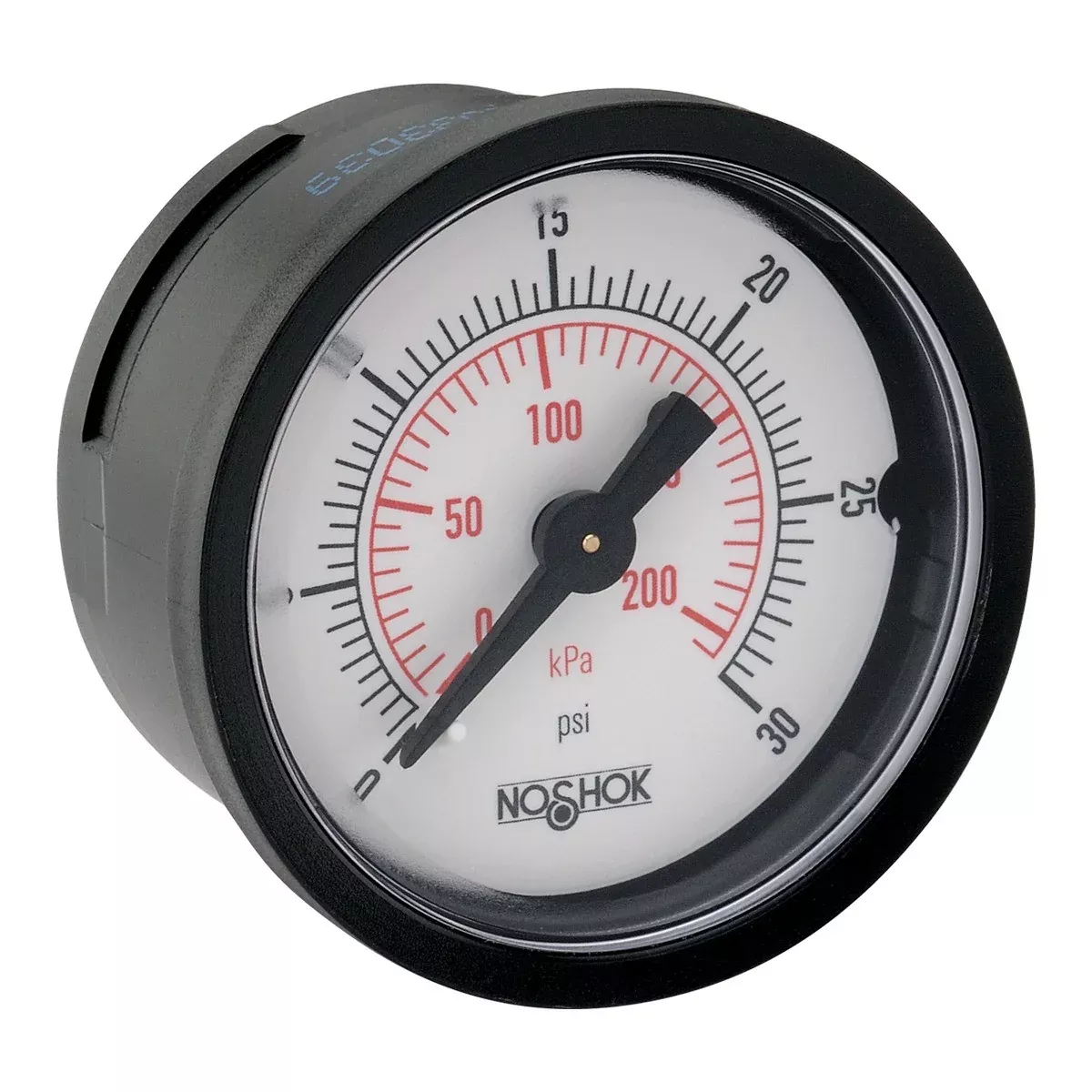

| Type | Dry Pressure Gauge |
|---|---|
| Full Scale Best Fit Straight Line (BFSL) Accuracy (±) | 2.5 % |
| Gauge Size | 2 in |
| Dial | White background with black primary scale & red secondary scale. UV resistant |
| Case Type | Acrylonitrile Butadiene Styrene (ABS), Back Connection |
| Series | 100 |
| Pointer | Molded Plastic |
| Movement | Brass & nylon, or all-brass with highly polished bearing surfaces |
| Warranty | 1 yr |
| Scale Option | psi/kPa Dual Scale |
| Measuring Element | Copper Alloy Bourdon Tube |
| Options | Chrome Front Flange – Acrylonitrile Butadiene Styrene (ABS) Case |
| Brand | NOSHOK |
| Manufacturer Part | 20-110-100-psi/kPa-1/8-CFF |
| Size | 2″ |
| Country of Origin | Made in the United States |
Materials & Construction
| Lens/Display Material | Acrylic |
|---|---|
| Bezel Material | Built-in bezel, molded as an integral part of the case for ease of panel mounting |
| Case Material | Acrylonitrile Butadiene Styrene (ABS) |
Performance
| Pressure Range | 0 to 100 psi |
|---|
Connections
| Connection Type | National Pipe Thread (NPT) |
|---|---|
| Connection Location | Back |
| Connection Size | 1/8 in |
| Connection Material | Brass |
