When you’re running disc harrows, cultivators, or other implements with transport wheels, a worn spindle means trouble. You’ll notice wobbly wheels, bearing noise, or worse—a complete hub failure when you’re trying to get the field finished. This 11-1/2 inch spindle keeps your W709, W719, and W809 hubs spinning true so you can focus on getting the job done instead of roadside repairs.
What You’re Getting

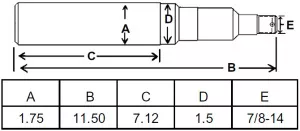

- Precision-machined 1-3/4 inch diameter spindle built to OEM specifications
- Made in the USA construction that handles the constant vibration and stress of field work
- Direct fit for 280511, 280521, and 280621 hub assemblies without modifications
- 11-1/2 inch length provides proper bearing spacing and load distribution
Built for Real Farm Work
This spindle is the backbone of your transport wheel system on disc harrows, field cultivators, and similar implements. Whether you’re moving between fields at transport speed or working ground at operating speeds, these wheels take a beating from rocks, clods, and the constant flexing that comes with implement work.
Made to Last
Agricultural spindles see forces that would destroy automotive parts in no time. This one’s forged from quality steel and machined to precise tolerances where the bearings ride. The surface finish and dimensions are critical—sloppy tolerances mean short bearing life and expensive comebacks.
Installation Notes
Remember to order your spindle nut (912952) and washer (913607) separately—they’re not included but essential for proper assembly. Clean the hub thoroughly and inspect your bearings while you’ve got everything apart. A new spindle deserves fresh grease and good bearings to do its job right.
