Edwards Signaling 874-G5

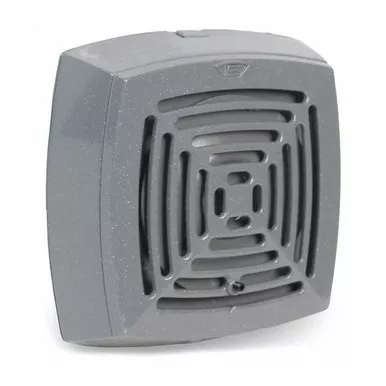

EDWARDS SIGNALING 874-G5 is a surface-mount vibrating horn for indoor audible signaling. It operates on 24V AC and produces a continuous horn sound with selectable volume, rated from 78 to 103 dB, with a maximum output of 103 dB at 10 ft and 113 dB at 1 m. The unit features a die-cast gray housing with a corrosion- finish and includes Adaptaplate.Key Features:Alarm Type: Audible horn with no visual indicator. Sound Output: Continuous horn pattern with selectable volume; 78 to 103 dB, with maximum 103 dB at 10 ft and 113 dB at 1 m. Operating Principle: Vibrating sound principle. Electrical Rating: 24V AC input/operating voltage. Current Draw: 0.63 A operating current. Mounting: Surface-mount design. Construction: Die-cast housing in gray with corrosion- finish. Connection Type: Plug-in connector. Included: Adaptaplate. Location Rating: Indoor use. Standards: UL Listed. Dimensions: 5 in W x 5 in L x 2-1/8 in D.
