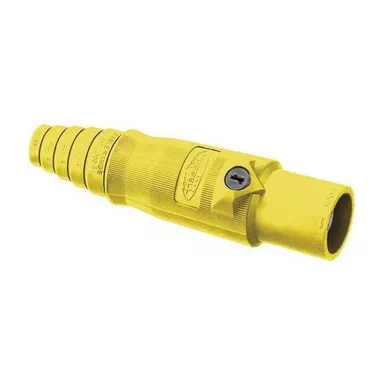

Hubbell Wiring Device-Kellems Single Pole Inline, 400 A, Male, Yellow HBL400MY

The HUBBELL Connector, Series 16, is a single pole male connector intended for use in temporary electrical power distribution applications. It accommodates cable sizes from 2/0 to 4/0 AWG and features a taper nose style with double set screw terminal connections. The housing is constructed fromelastomer and includes an Insulgrip style housing to assist with assembly and disassembly.Key Features of the HUBBELL Series 16 Single Pole Male Connector: Amperage Rating: Rated for operation at up to 400 A AC or DCVoltage Rating: Up to 600V AC or 250V DCCable Range: Accepts wire sizes from 2/0 AWG to 4/0 AWGContact Material: Brass contacts with a single cam design; see manufacturer specifications regarding performance characteristicsTerminal Connection Type: Double set screw terminals designed to hold conductors in positionNEMA Enclosure Ratings: Meets NEMA Types 3R, 4X, and 12 requirementsStandards Compliance: Listed under ANSI/NFPA 70 (NEC), UL/cUL standards, UL Enclosure Types, and UL94 HB flammability ratingCompatible With: Compatible with Series 15, Series 16, and Insulgrip devices; meets UL1691 specifications
