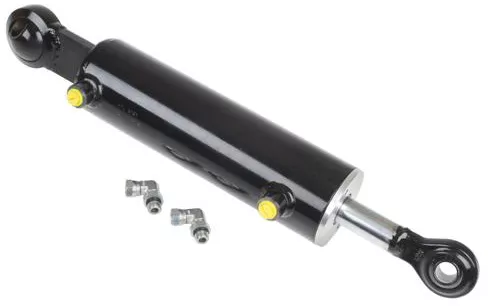

If you’ve ever spent time cranking an adjustable top link trying to get your implement positioned just right—especially when you’re working alone or in tight quarters—you know how much easier hydraulic control makes everything. This hydraulic top link provides precise implement positioning and enhanced control for three-point hitch operations while eliminating the need for manual adjustments, improving operator efficiency and reducing fatigue during long working sessions. No more jumping off the tractor every few minutes to twist that threaded link.
What You’re Getting
- 8-inch stroke with 20-inch closed length extending to 28 inches for versatile implement positioning
- Cat 2 connection on the barrel end, Cat 1 on the rod end for maximum tractor compatibility
- Ball end connections that provide smooth articulation while reducing stress on attachment points
- 3-inch bore cylinder with 9/16-18 ORB ports for reliable hydraulic operation
- Built-in seal kit compatibility (HSK3002) for easy maintenance down the road
Built for Real Farm Work
This top link works with tractors commonly used for field preparation, crop planting, cultivation, and harvesting operations on farms ranging from small acreage to large commercial operations. The precise control allows operators to maintain consistent implement depth and angle across varying field conditions. Whether you’re setting up a disc harrow for spring tillage or adjusting a finish mower to follow ground contours, this hydraulic link gives you the control you need from the cab.
Made to Last
The robust construction ensures reliable performance under demanding field conditions. The 3-inch bore cylinder provides plenty of power for most agricultural implements, while the AgSmart manufacturing means you’re getting quality components that’ll handle the vibration, dust, and stress that comes with real farm work.
Installation Notes
This mixes Cat 1 and Cat 2 connections, so double-check your tractor’s hitch category and implement requirements before ordering. This top link integrates with standard three-point hitch systems, but you’ll want to verify tractor hydraulic system compatibility before installation. Most tractors with auxiliary hydraulics can run this without issues, but it never hurts to check your flow and pressure specs first.
