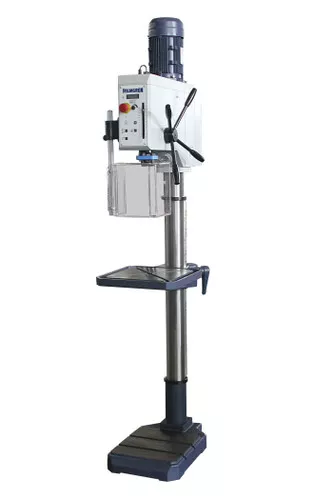

Palmgren 9680134 Variable Speed Gear Head Drill Machine is engineered for power, precision, and versatility in demanding workshop environments. Featuring a 20″ swing, this drill machine is built to handle medium to large-sized workpieces with ease. Its powerful 2 HP motor, paired with a 230V power supply, delivers consistent torque and performance for a wide range of materials and drilling operations. Equipped with a variable speed gear head system, the 9680134 allows for easy and precise speed adjustments without changing belts—providing maximum control for both light-duty and heavy-duty drilling. The gear-driven transmission ensures smooth operation, while the heavy-duty construction minimizes vibration and maximizes drilling accuracy.
Type: Gear Head Drill Machine | AMPS: 6.5 | Base Dimension (in.): 13.75 x 12.625 | Capacity Cast Iron (in.): 1-1/8 | Capacity Steel (in.): 1 | Column Diameter (in.): 3.62 | Drill Press Model: Floor Model | Drill Press Type: Gear Head | Max. Spindle To Base (in.): 47 | Maximum Spindle to Table (in.): 34-1/2 | Motor HP: 2 | Number of Spindle Speeds: Variable | Phase: Three | Spindle Taper: MT3 | Spindle Travel (in.): 5 | Swing (in.): 20 | Table Dimensions (in.): 15.5 x 14.75 | Table Slot Size (mm): 14 | Table Slots (in.): 4 | Voltage: 230
Features:
- Wide speed range with 4 different speed settings
- Simple knob selectors for operator ease in controlling spindle speeds
- Fully enclosed machine tool spindle with internal 3 MT mounted in precision bearings for maximum accuracy, minimizing deflection
- Front mounted control panel designed for operator convenience
- T-slotted production table and base
- Rack and pinion table raiser
- Front mounted dial adjusted work stop
- Interlocking chuck guard
- Maximum spindle runout of 0 0005″
- Work light
Looking for more information about Palmgren Gear Head Drill Machines? Click here to view the Catalog.
Need help selecting the correct Palmgren Gear Head Drill Machine for your application? Please call (800) 608-5210 or email [email protected]
