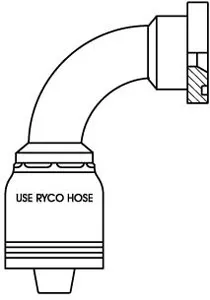

When you need to route hydraulic hose around tight corners or machinery components, straight fittings just don’t cut it. This 90-degree flange elbow lets you make that critical turn without kinking the hose or creating stress points that lead to early failure. Whether you’re plumbing a loader circuit or connecting hydraulic remotes, having the right angle makes all the difference in getting a clean, professional installation.
What You’re Getting
- SAE Code 62 flange design provides a solid, leak-free connection that won’t work loose
- 90-degree bend eliminates sharp hose bends that cause premature wear and flow restrictions
- 3/4 inch NPT threads and matching hose size for straightforward installation
- Heavy-duty construction handles high-pressure hydraulic applications
- Direct crimp-on design ensures a secure hose connection that won’t blow off under pressure
Built for Real Farm Work
This fitting works perfectly in hydraulic systems on tractors, loaders, and implements where space is tight and you need to route hose around obstacles. It’s the kind of component you’ll find in loader valve blocks, three-point hitch circuits, and hydraulic remote installations where making a clean 90-degree turn is essential for proper operation.
Made to Last
The Code 62 flange design is an industry standard for good reason—it provides maximum surface area for the seal and distributes stress evenly. The robust construction handles the pressure spikes and vibration that come with heavy hydraulic work, while the precision-machined threads ensure a tight, reliable connection every time.
Installation Notes
This is a crimp-on fitting that requires proper hydraulic hose crimping equipment for installation. Make sure to use the correct die size for your hose and crimp to manufacturer specifications. When installing the flange connection, use proper torque values and ensure the O-ring sealing surface is clean and undamaged for the best seal.
