Technical Specifications
General

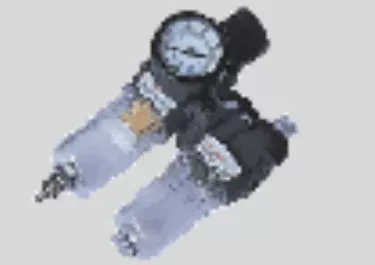

| Description | 1/8″ NPT Stacked Filter- Regulator- Lubricator |
|---|---|
| Filtration (Microns) | 5-40 |
| Regulating Range (PSI) | 7 to 125 |
| Recommended Oil | ISO VG 32 |
| Metal Body | Aluminum Alloy (Epoxy Coated) |
| Plastic Bowl | Polycarbonate |
| Body Shield | Painted Steel |
| Filter | Sintered Brass (40µ) or Plastic (5µ) |
| Brand | STC Valve |
| Manufacturer Part | AFL1500/2000-5 |
| Size | 1/8″ |
Performance
| Flow Rate (SCFM) | 16 |
|---|---|
| Operating Temperature (°F) | 40 – 140 |
| Max. Pressure(PSI) | 150 |
Connections
| Port Size (NPT) | 1/4″ |
|---|
