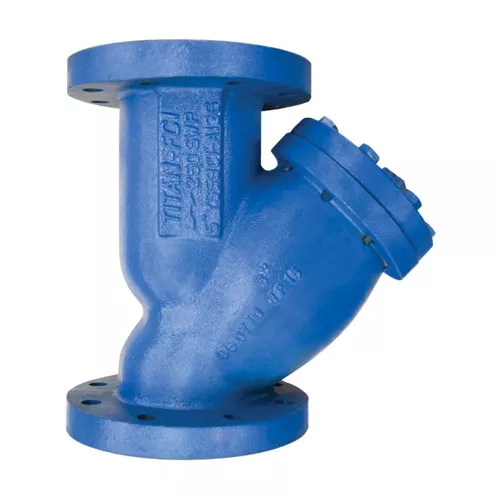

Titan Flow Control YS 58-CI Flanged Cast Iron Y-Strainer – ANSI Class 125 Description
Titan’s YS58 has convenient gauge taps furnished with a plug on both the inlet and outlet sides of sizes 2 – 8 in. These taps allow for easy installation of pressure gauges to monitor differential pressure and determine when screen cleaning is necessary. Additionally, sizes 2 – 6 in. have an extra boss for custom gauge tapping.
Titan Flow Control’s ANSI Class 125 Cast Iron Y-Strainers are installed in a piping system to remove unwanted debris from the pipeline, protecting expensive equipment downstream such as pumps, meters, spray nozzles, compressors, turbines, and much more. Y strainers can be installed in a horizontal or vertical pipeline as long as the screen is in a downward position. Straining is accomplished via an internal perforated or mesh lined straining element, the size which should be determined based on the size of the smallest particle to be removed.
Replacement screens and gaskets available. Please call 1 (800) 333-3331 for more information.
Note: The straining element needs regular cleaning to prevent debris build up. It is not advisable to allow the differential pressure to increase by 20 PSI. Although cleaning normally requires the removal of the straining element, installing and using a Titan Blow-Off Drain Valve can increase the time between cleanings.
